Classic™ Steel

Classic short or long panel steel garage doors with or without insulation.

Available in a wide range of looks and colors, Clopay’s Classic™ Collection steel doors complement every home so there’s no sacrificing style for strength, durability and comfort.

GALLERY

FEATURES

OVERVIEW

Clopay’s Classic™ steel doors provide the traditional raised-panel style garage door in a wide range of construction and design options, allowing you to take the time-tested, classic garage door look and make it your own. To see an accurate image for uncommon garage door sizes, use our online QuickDraw tool.

Construction Overview

  • Short and long panel steel garage doors
  • Durable steel garage doors available in 3, 2, or 1-layer construction
  • Insulation options include 2" or 1-3/8" Intellicore® polyurethane, 2" or 1-3/8" polystyrene or 1-5/16" vinyl backed polystyrene insulation available. Insulated door R-values from 6.3 to 18.4
  • The steel skins are protected by the use of a tough, layered coating system, which includes a hot-dipped galvanized layer and baked-on primer and top coat
  • WINDCODE® door reinforcement product available for high wind load applications

Design Overview

  • Available in short and long raised panel design options. The three-layer Premium doors have a defined Elegant raised panel design.
  • 14 factory finish paint colors available, including Standard White, Mocha Brown, Ultra-Grain® Classic Cherry Finish and more.
  • A wide variety of window options are available, including decorative, architectural, and double-top window sections.
  • Multiple glass options available including acrylic, insulated, frosted, seeded, rain, and obscure.
  • Window grilles are removable for easy cleaning.

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:


  • California SB 1013
  • Washington HB 1112 - Hydrofluorocarbon Greenhouse Gas Emissions
  • Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations.
  • New Jersey A-5583/S-3919 – Greenhouse Gas Bill

LIFTMASTER® ELITE SERIES™

  • Clopay Recommends LiftMaster® Elite Series® openers for these garage doors. These openers have a range of features that truly make lives easier.

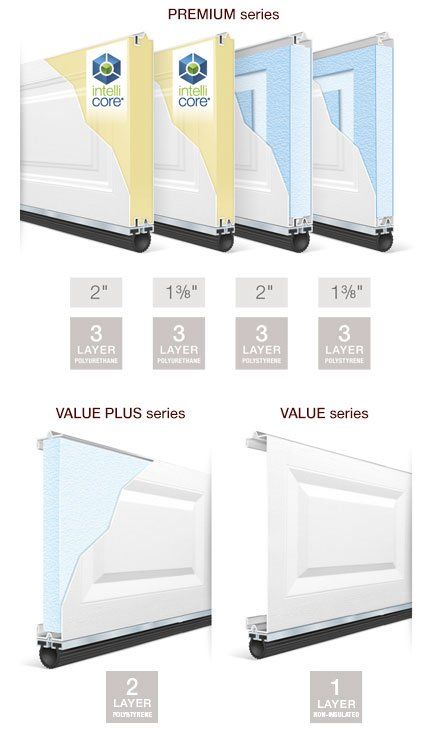

Construction

  • Available in 3-layer, 2-layer, or 1-layer construction.
  • 2" or 1-3/8" Intellicore® polyurethane, 2" or 1-3/8" polystyrene or 1-5/16" vinyl backed polystyrene insulation available. Insulated door R-values from 6.3 to 18.4.
  • Replaceable vinyl bottom weather seal in rust free aluminum retainer helps protect against the elements.
  • Grilles are removable for easy cleaning. (Example Video)
  • Patented Safe-T-Bracket® - Prevents serious injury that could occur if the bottom bracket were removed with the garage door closed and under tension.
  • Rust-Prevention System - Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer, a protective metal oxide pretreatment and a baked on primer and top coat.

Greater Energy Efficiency

Thermal break separates the interior form the exterior skin to improve energy efficiency and comfort.

Rust-Prevention System

Steel skins are protected through a tough, layered coating system, including a hot-dipped galvanized layer, a protective metal oxide pretreatment, and a baked-on primer and top coat.

Door sample shown in Standard White.

Product complies with 2015 IECC air filtration requirement of 0.40 cfm/ft2 or less (IECC, Section C402.5.2)

Warmer. Quieter. Stronger.


Garage doors featuring Intellicore® insulation technology represent the ultimate smart choice for homeowners. Clopay’s Intellicore® is a proprietary polyurethane foam that is injected into a garage door, expanding to fill the entire structure. The result is a door with incredible strength, energy efficiency, and durability.


Downloads

Care & Maintenance Insulated Steel - Installation Instructions & Maintenance

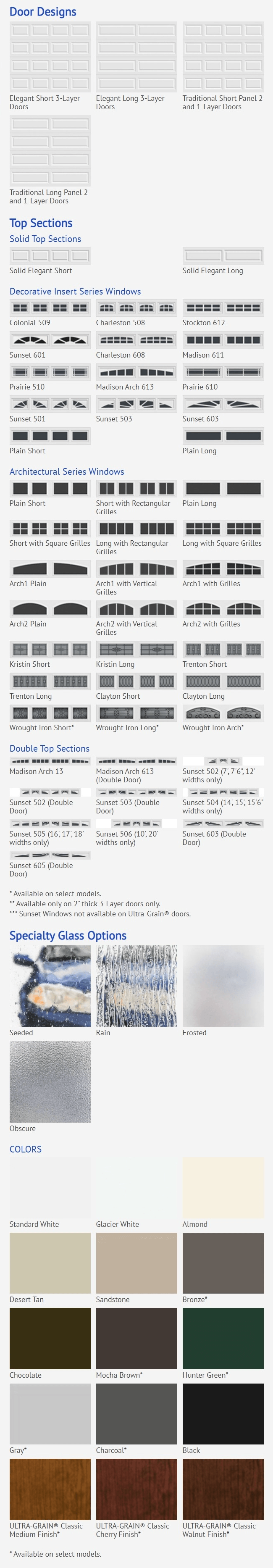

OPTIONS

-
