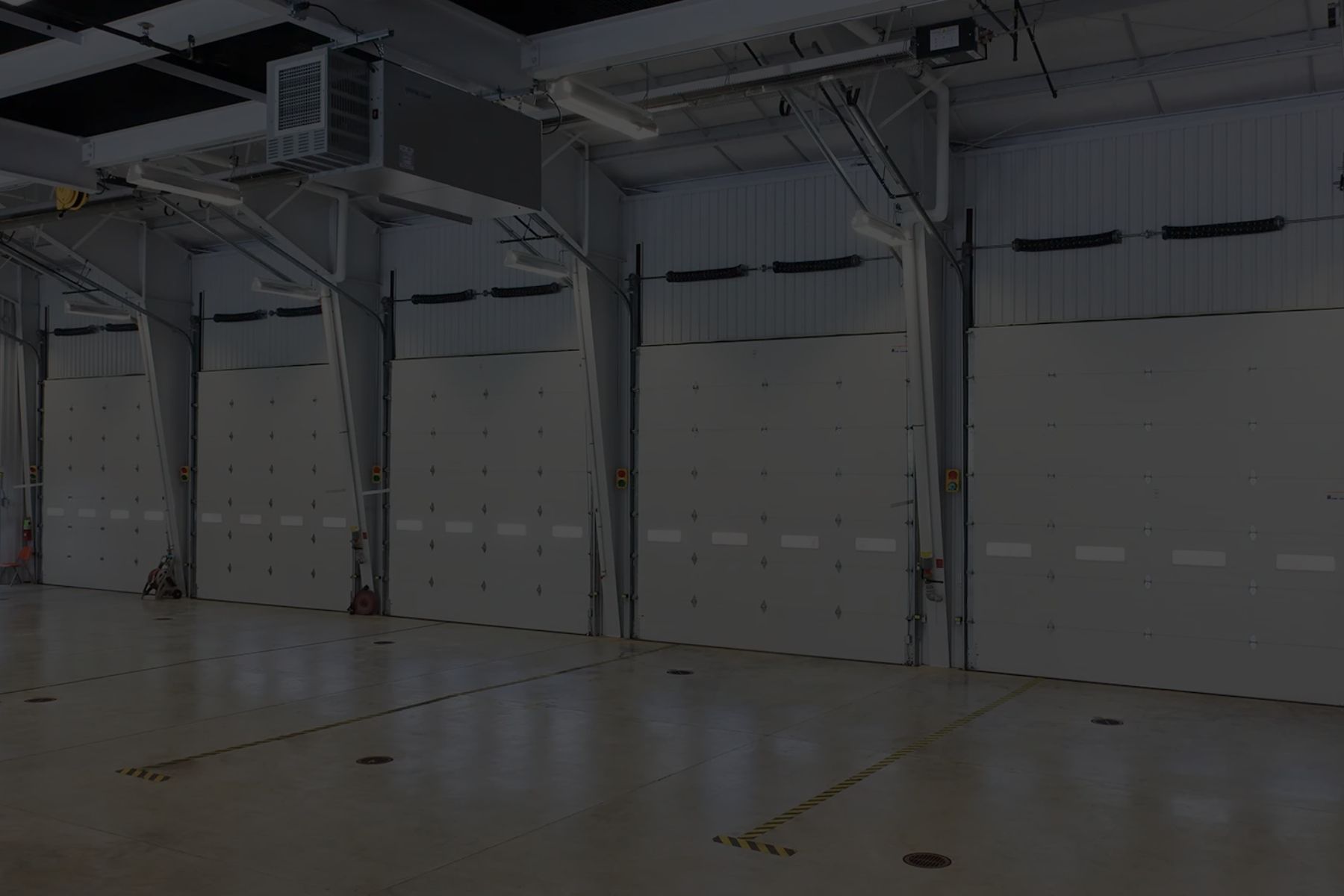

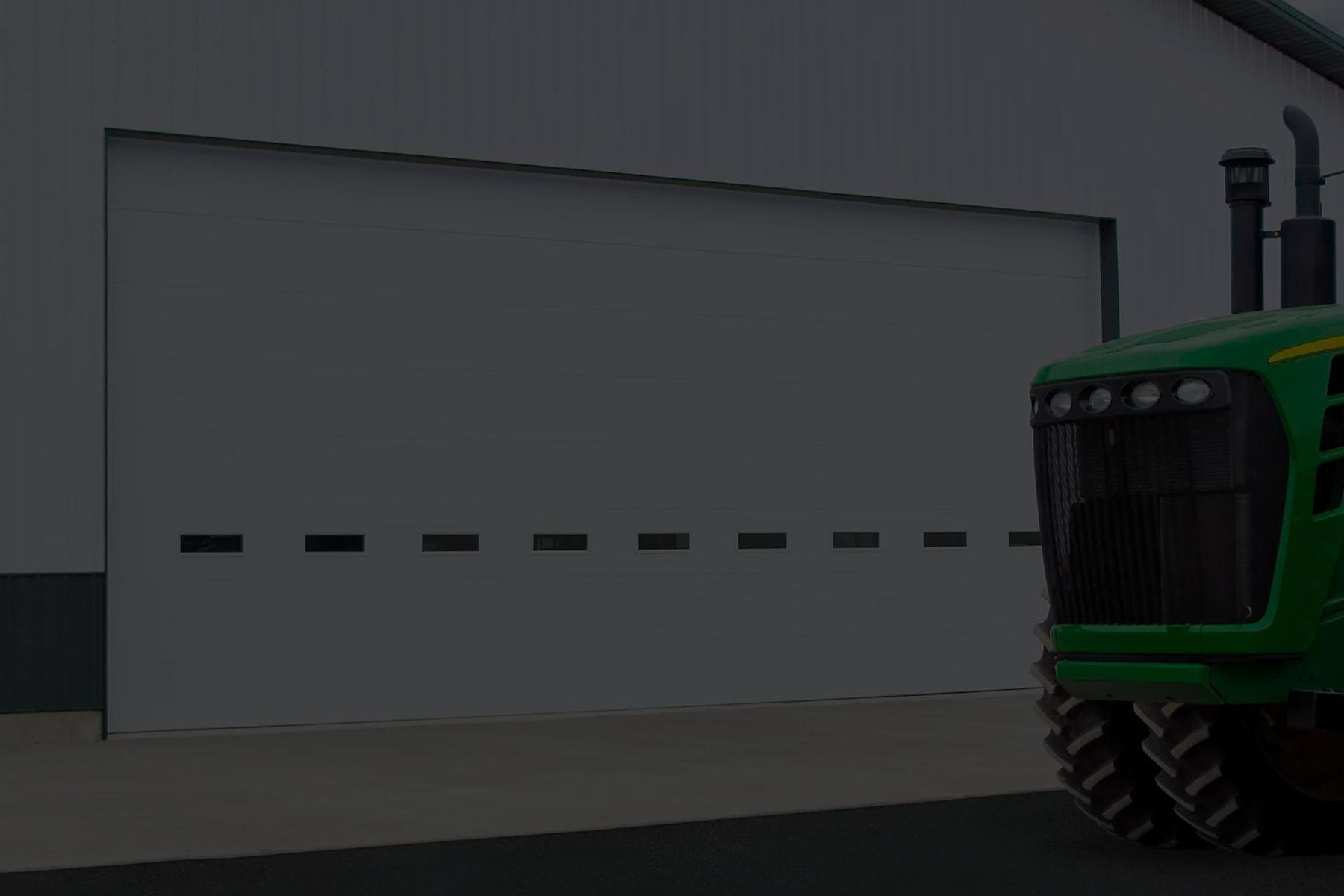

Energy Series with Intellicore®

Polyurethane insulated commercial steel doors. R-Values to 27.2

Clopay’s Intellicore overhead doors meet the needs of commercial buildings that require exceptional climate control. They feature polyurethane insulation which helps keep the building’s interior cooler in summer and warmer in winter.


Our energy-efficient commercial doors include stucco or woodgrain embossed steel exteriors with flush, minor ribbed, or raised panel section designs. Ideal applications include warehouses, manufacturing plants, municipal buildings and retail stores.

FEATURES

OVERVIEW

Model 3730

  • Thickness: 3"
  • Emboss: Stucco
  • Exterior Gauge: 27
  • Pattern: Minor Ribbed
  • Intellicore: Yes
  • R-Value*: 27.2
  • Maximum Width: 30' 2"
  • Maximum Height: 20' 0"


Model 3720

  • Thickness: 2"
  • Emboss: Stucco
  • Exterior Gauge: 27
  • Pattern: Minor Ribbed
  • Intellicore: Yes
  • R-Value*: 18.4
  • Maximum Width: 40' 2"
  • Maximum Height: 20' 0"


Model 3724

  • Thickness: 2"
  • Emboss: Stucco
  • Exterior Gauge: 24
  • Pattern: Minor Ribbed
  • Intellicore: Yes
  • R-Value*: 18.4
  • Maximum Width: 36' 2"
  • Maximum Height: 20' 0"


Model 3718

  • Thickness: 1-3/4"
  • Emboss: Stucco
  • Exterior Gauge: 27
  • Pattern: Flush
  • Intellicore: Yes
  • R-Value*: 16.2
  • Maximum Width: 24' 2"
  • Maximum Height:20' 0"


Model 3723

  • Thickness: 2"
  • Emboss: Woodgrain
  • Exterior Gauge: 27
  • Pattern: Raised Panel
  • Intellicore: Yes
  • R-Value*: 18.4
  • Maximum Width: 24' 2"
  • Maximum Height:18' 0"


Model 3717

  • Thickness: 1-3/4"
  • Emboss: Stucco
  • Exterior Gauge: 27
  • Pattern: Minor Ribbed
  • Intellicore: Yes
  • R-Value*: 16.2
  • Maximum Width: 24' 2"
  • Maximum Height: 20' 0"


Model 3722

  • Thickness: 2"
  • Emboss: Stucco
  • Exterior Gauge: 20
  • Pattern: Flush
  • Intellicore: Yes
  • R-Value*: 18.4
  • Maximum Width: 32' 2"
  • Maximum Height: 20' 0"


Model 3715

  • Thickness: 1-3/8"
  • Emboss: Stucco
  • Exterior Gauge: 27
  • Pattern: Minor Ribbed
  • Intellicore: Yes
  • R-Value*: 12.9
  • Maximum Width: 18' 2"
  • Maximum Height: 16' 0"


Model 3721

  • Thickness: 2"
  • Emboss: Woodgrain
  • Exterior Gauge: 27
  • Pattern: Flush
  • Intellicore: Yes
  • R-Value*: 18.4
  • Maximum Width: 24' 2"
  • Maximum Height: 18' 0"


* R-Values calculated per DASMA TDS-163 on a solid door
** Maximum Width and Height values are standard sizing.

Construction

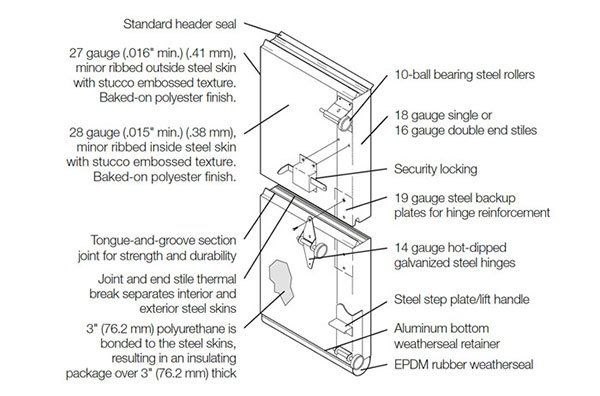

Model 3730

  • Panel Design: 3" thick stucco embossed ribbed steel exterior
  • Steel Gauge:
  • 27 gauge (.016" min) exterior
  • 28 gauge (.016" min) interior
  • Joint Design: Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
  • Thermal Conductivity: R-value 27.2* for maximum energy efficiency
  • Paint System: 3-stage paint process delivers maintenance free finish that resists rust prevention
  • Colors: Snow mist white, commercial brown, Colorblast™
  • Limited Warranty:
  •  10-year paint / 10-year delamination / one-year material & workmanship

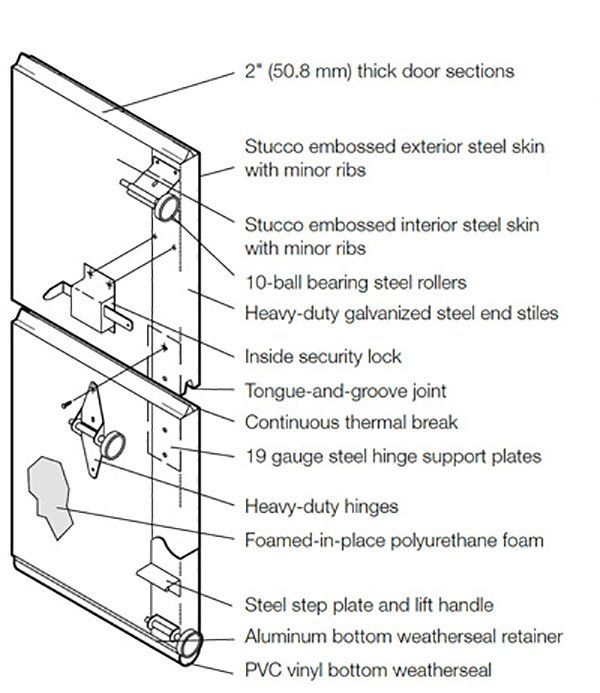

Model 3720 / 3722 / 3724

  • Panel Design:
  • (3720 & 3724) 2" thick stucco embossed steel exterior with minor ribbed pattern
  • (3722) 2" thick stucco embossed flush steel exterior
  • Steel Gauge:
  • (3720) 27 gauge (.016" min) exterior; 28 gauge (.016" min) interior
  • (3724) 24 gauge (.022" min) exterior; 28 gauge (.016" min) interior
  • (3722) 20 gauge (.034" min) exterior; 28 gauge (.016" min) interior
  • Joint Design: Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
  • Thermal Conductivity: R-value 18.4* for maximum energy efficiency
  • Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
  • Colors:
  • (3720) Standard white, glacier white, commercial tan, chocolate, mocha brown, gray, Trinar white, Trinar beige, almond, desert tan, sandstone and Colorblast™
  • (3724) Standard white, commercial tan, chocolate, black, gray, Trinar white and Colorblast™
  • (3722) Standard white, chocolate and Colorblast™
  • Limited Warranty:
  •  10-year paint / 10-year delamination / one-year material & workmanship

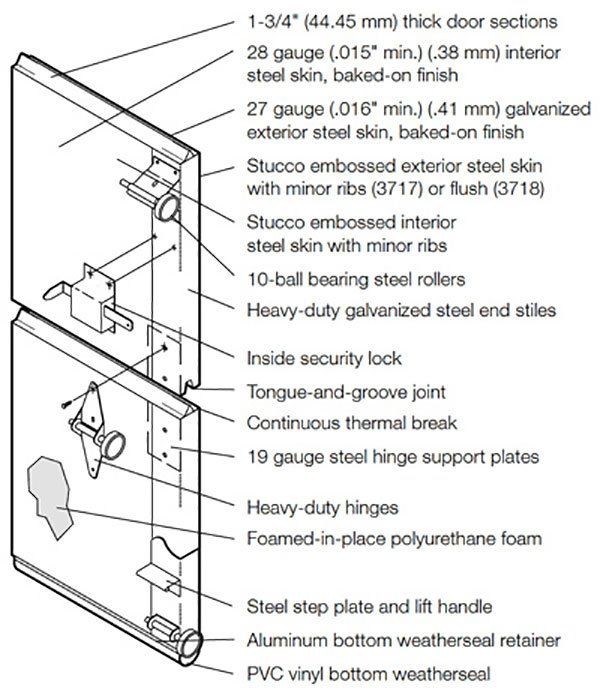

Model 3717 / 3718

  • Panel Design:
  • (3717) 1 3/4" thick stucco embossed steel exterior with minor ribbed pattern
  • (3718) 1 3/4" thick stucco embossed flush steel exterior
  • Steel Gauge:
  • 27 gauge (.016" min) exterior
  • 28 gauge (.016" min) interior
  • Joint Design: Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
  • Thermal Conductivity: R-value 16.2* for maximum energy efficiency
  • Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
  • Colors: Pre-painted snow mist white, commercial brown, tan or gray. Optional Trinar white.
  • Limited Warranty:
  •  10-year paint / 10-year delamination / one-year material & workmanship

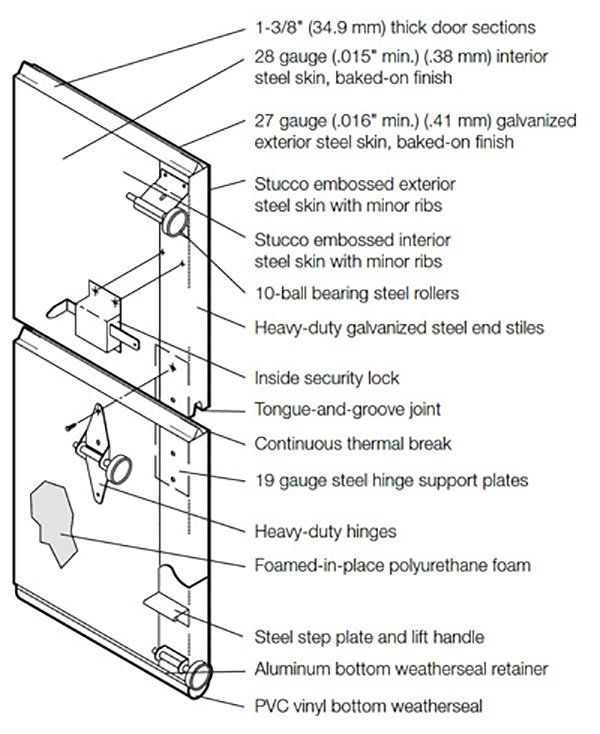

Model 3715

  • Panel Design: 1 3/8" thick stucco embossed steel with minor ribbing
  • Steel Gauge:
  • 27-gauge (.016" min) exterior
  • 28 gauge (.016" min) interior
  • Joint Design: Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
  • Thermal Conductivity: R-value 12.9* for maximum energy efficiency
  • Paint System: 3-stage paint process delivers maintenance free finish that resists rust perforation
  • Colors: Pre-painted snow mist white or commercial brown, tan and gray
  • Limited Warranty:
  •  10-year paint / 10-year delamination / one-year material & workmanship


Commercial Hardware

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.


  • 14 gauge hinges
  • Commercial 10 ball steel rollers with options for nylon tire rollers
  • 10,000 cycle torsion springs
  • Steel step plate and lift handle for easy operationInside slide lock for increased security
  • 19 gauge steel hinge support plates
  • 18-gauge single end stiles
  • 16-gauge double end stiles
  • Galvanized aircraft cables with 7:1 safety factor
  • 2” or 3” track in a variety of configurations to meet building design requirements



Commercial Track Applications

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.

Commercial Torsion Springs

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles.

Downloads

Brochure - Break-away Bottom Section Brochure - Commercial Overhead Doors Overview Brochure - Passdoors Brochure - Safe-T-Stop Chain Hoist Warranty - 8 Year Extended on Hardware

Model 3715

Brochure - Model 3715

Model 3717/3718

Brochure - Model 3717/3718

Model 3720

Brochure - Model 3720

Model 3722

Brochure - Model 3722

Model 3724

Brochure - Model 3724

Model 3730

Brochure - Model 3730

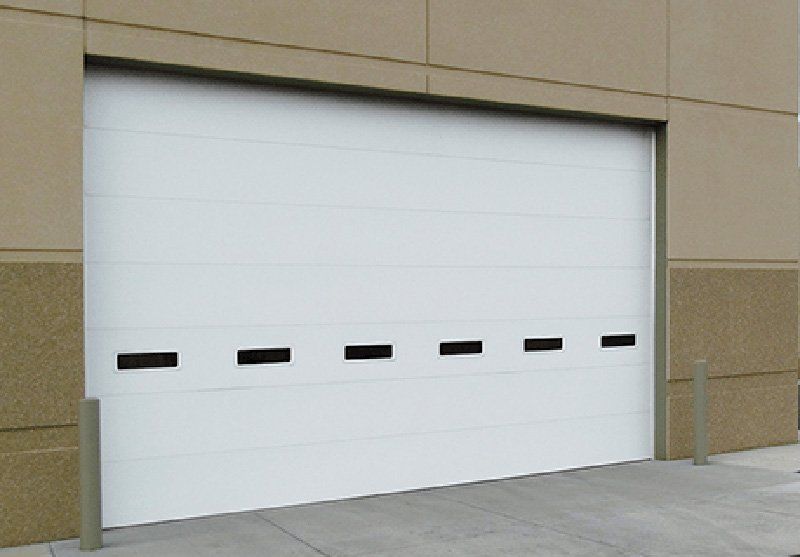

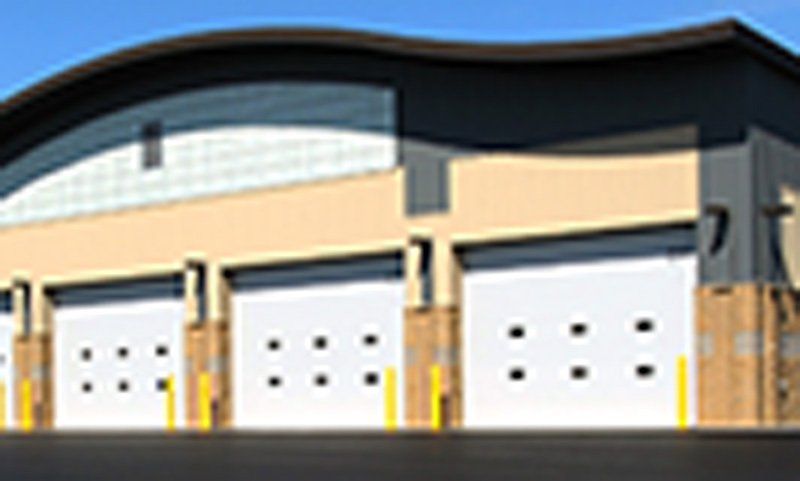

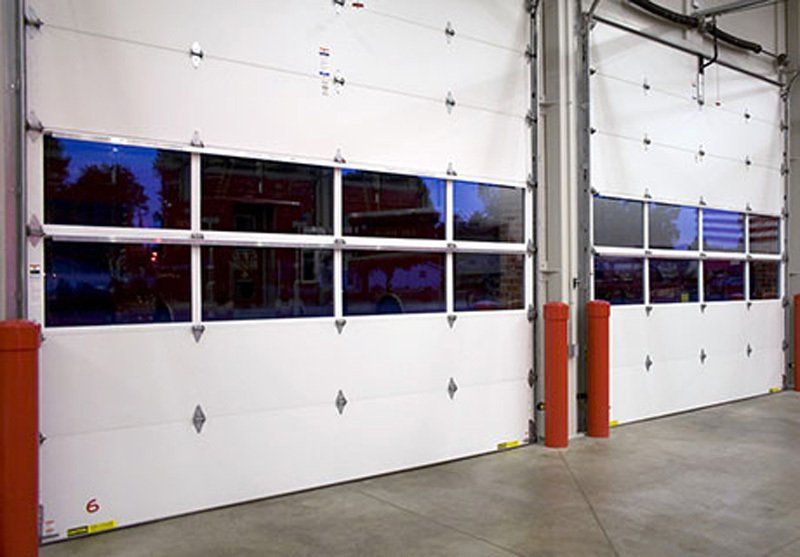

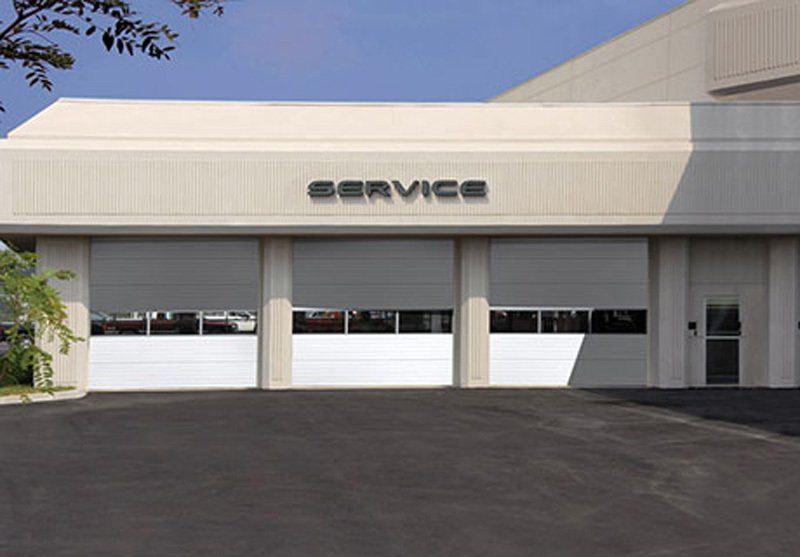

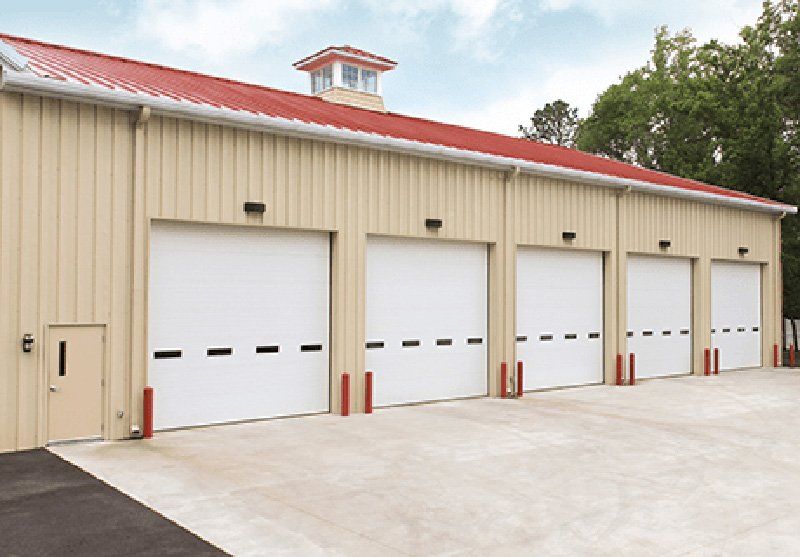

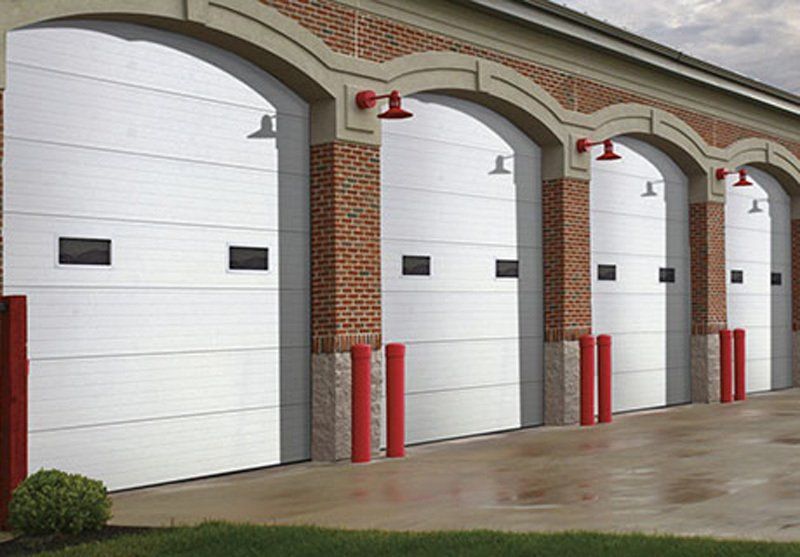

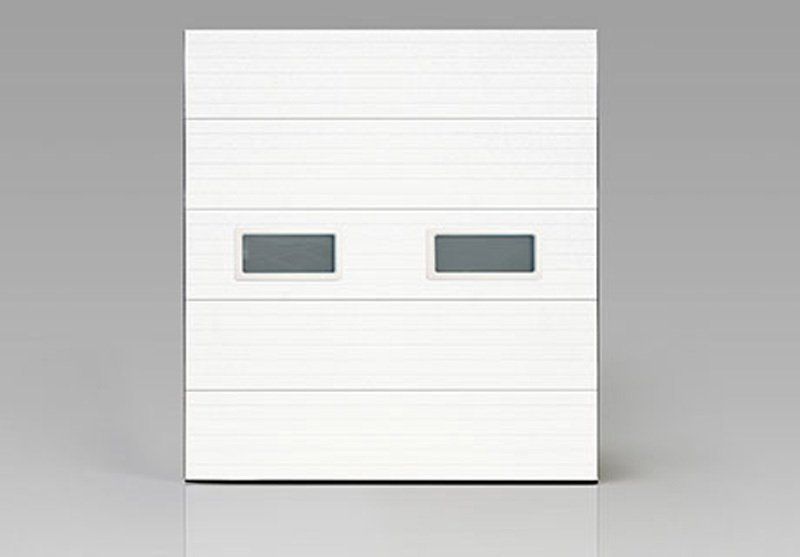

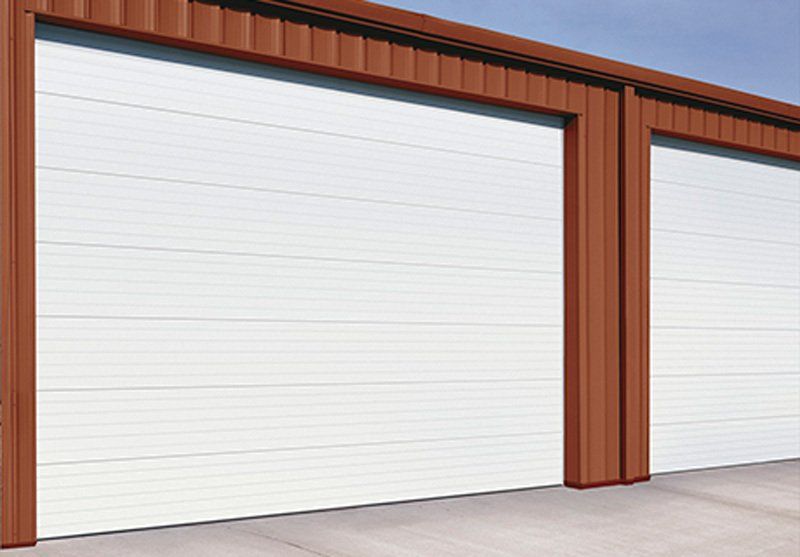

GALLERY

OPTIONS

Intellicore® doors come with a variety of options to address your building requirements. Options below are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.

Design Options

  • Windows
  • 24"x8"24"x12"
  • Full View (pre-painted white or brown or clear anodized)
  • Black frame Window with Rounded Corners



Colors

  • White - All Models
  • Glacier White - 3715, 3717, 3718, 3720
  • Trinar® White - 3715, 3717, 3718, 3720
  • Trinar® Beige - 3717, 3718, 3720
  • Brown - All Models
  • Mocha Brown - 3715, 3717, 3718, 3720
  • Black - 3724
  • Tan - 3715, 3717, 3718, 3724
  • Gray - 3715, 3717, 3718, 3724
  • Charcoal - 3708, 3709, 3715, 3717, 3718, 3720, 3721, 3723, 3728, 3729
  • ColorBlast – All models

Performance Options

  • High Cycle Springs (25K, 50K and 100K available)
  • 3" heavy duty track (where not standard)
  • Outside keyed Security Lock
  • Double End Stiles
  • Design pressure rated (WindCode)
  • Impact Rated
  • Photo eyes, sensing edges and Operators
  • Extended 8-Year Hardware Warranty
  • Header (top) and Jamb Seals
  • High Performance Hardware Upgrade


Custom Options

  • Mullions
  • Breakaway Sections
  • Pass Door
