Coiling Steel Sheet Doors Available in a Range of Gauges and Colors


FEATURES

OVERVIEW

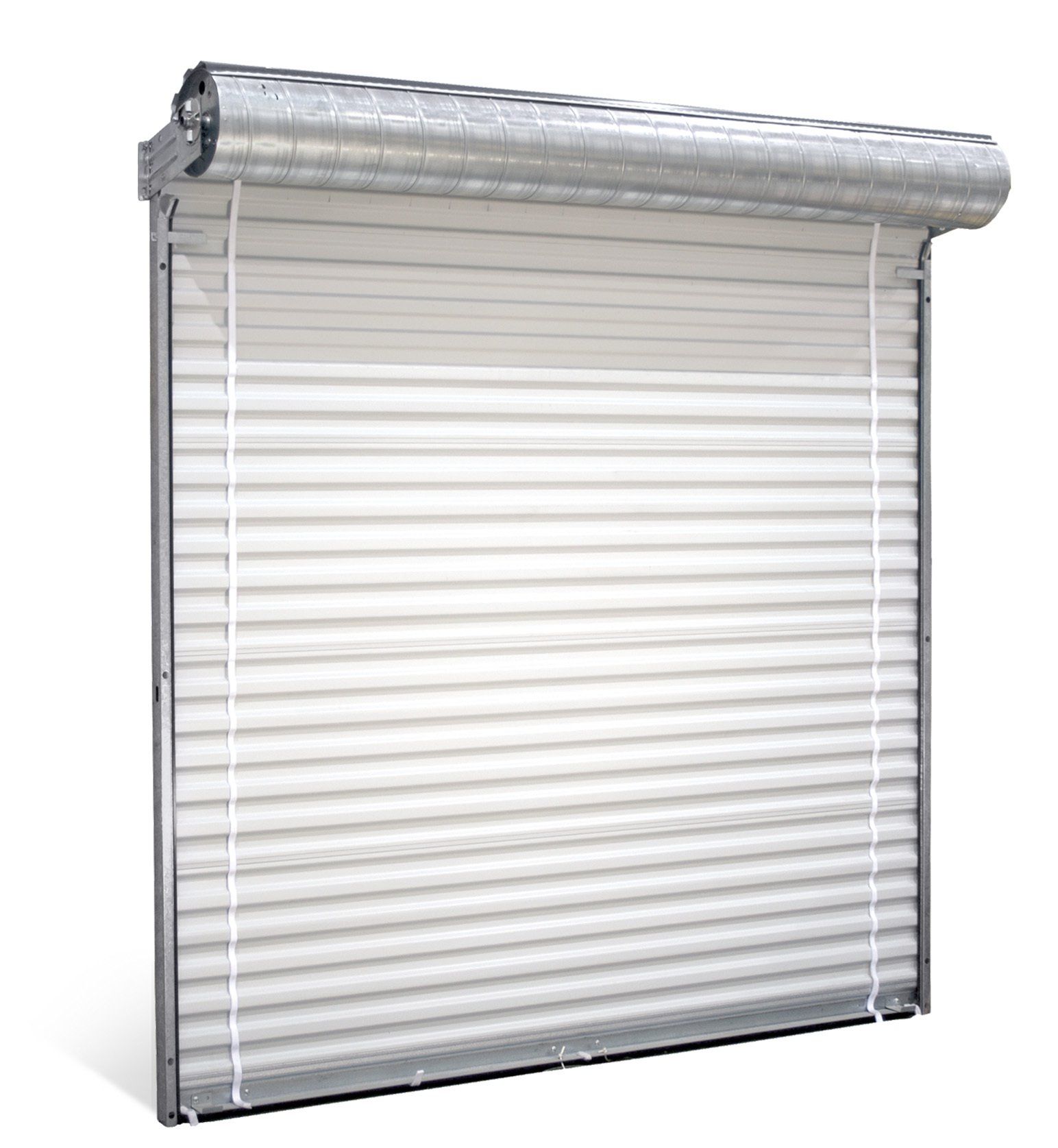

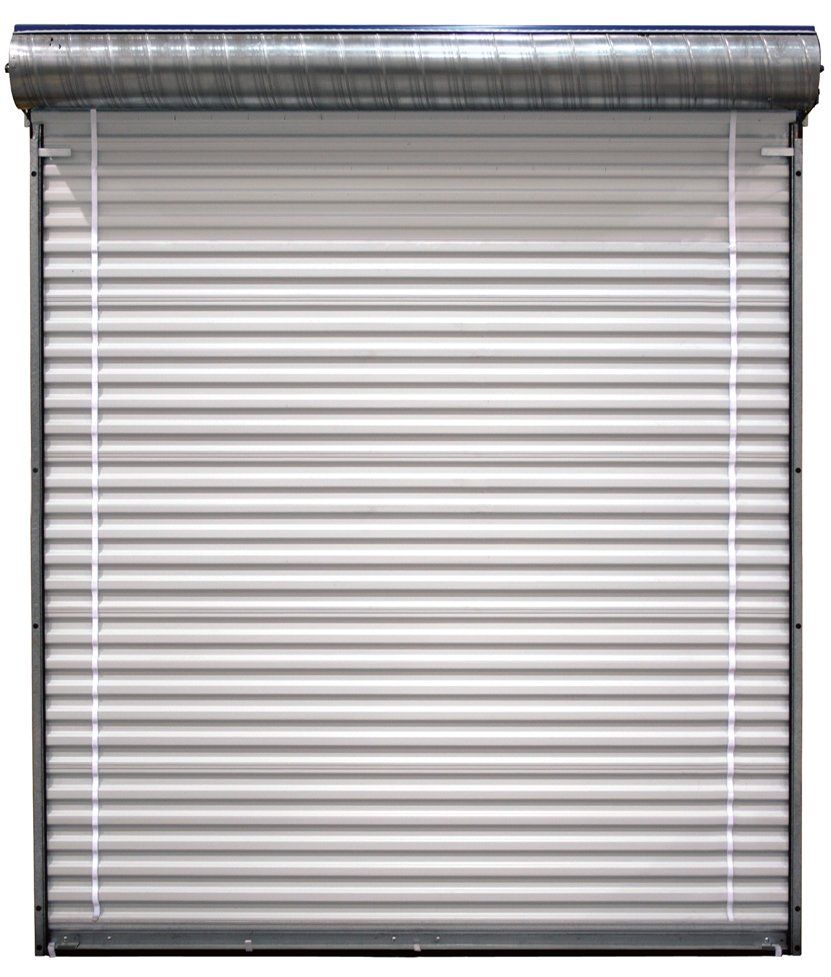

Constructed from 26ga by 24 in wide sheets of steel roll formed with integral grooves that are hemmed together to form a continuous sheet guided vertically by roll formed guides. The sheet door coils around a spring loaded shaft above the header as the door is opened. Designed with ease of installation in mind.

Models

  • 150C (18 gauge, 9" Coil)
  • 157C (16 gauge, 12" Coil)
  • 160C (12 gauge, 12" Coil)

Construction

  • 26 gauge hot-dipped galvanized steel curtain with a baked-on silicone polyester top coat.
  • Roll-formed guides of hot-dipped galvanized steel (18 gauge 150C, 16 gauge 157C and 12 gauge 160C).
  • Self-lubricating wearstrips on curtain prevent metal-to-metal contact and muffle door noise.
  • Curtains are prepainted inside and out to inhibit rust. Hot-dipped, galvanized steel is painted with primer and given a tough oven-baked silicone polyester top coat, to provide the most rust-resistant steel door available.
  • Heavy-duty bottom bar withstands the external elements.
  • Full bulb-type bottom weatherstrip ensures proper fit along irregular floors.
